For 'Series 3' BrightSign Units w/USB or Serial Port

16 Input, 16 Output DMX (USB or TTL Serial)

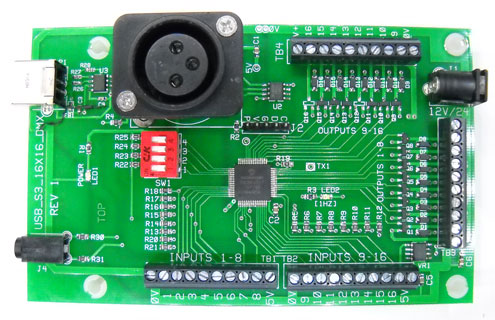

USB-S-16x16-DMX-P

Features:

• Footprint (5.3 x 3.1 inches)
• 16 inputs, 16 medium current outputs (2 Amperes each)
• Terminal blocks for all input connections
• External '+V' (12 or 24VDC) Required to drive external lighting and supply 5V for logic
• On board LED's to indicate Power and Processor running.
• USB or Serial (3.5mm stereo)
• Serial Port Setup: 38400 n,8,1
• 'P' version has 'Serial Polarity' selection.

When any input goes low (button input), then a string is sent to the BrightSign

The strings for input closures are:

• 1  =  "1",13 (character "1" followed by a carriage return of chr(13))
• 2 = "2",13
• 3 = "3",13
• 4 = "4",13
• 5 = "5",13
• 6 = "6",13
• 7 = "7",13
• 8 = "8",13
• 9 = "9",13
• 10 = "10",13 ("1" followed by "0" then CR)
• 11 = "11",13
• 12 = "12",13
• 13 = "13",13
• 14 = "14",13
• 15 = "15",13
• 16 = "16",13

Note: In BrightAuthor set the Serial I/O to ASCII.  Baud Setting: 38400,N,8,1 (No parity, 8 bits, 1 stop bit)

Note: If using the Stereo Connector, be sure to select 'inverted serial' when setting up the serial port

Description of Operation:
This board is used to interface to a BrightSign with Serial or USB port.

Serial Transmission 'Break' Protocol:  The serial port (BrightSign) has to allow 20 milliseconds to elapse between serial data 'bursts' going out.  This 20 millisecond 'rest' time is interpreted by the HMS board as a 'Break' in serial transmission.  This 'Break' condition synchronizes the HMS board to the serial transmissions from the BrightSign (or other device).

Controlling the board:  This boards uses the 'HMS Command Protocol'.  Commands are listed here.  For 'Not HMS Protocol' see the information below under Options.  Note: This HMS Protocol is valid for Firmware version 5.0 and up.

Version 6.x firmware has Dual Baud Rate Selection (38,400 or 115,200)

Outputs:

Outputs are 'ON' or 'OFF'.  To set the byte for the output use the following table and add the decimal numbers to get the desired results.  I.E. If you want output 1 and 8 on, add 1 to 128 = 129.  Sending 129 sets output 1 and 8 on.  The same scheme is used to set port2 (outputs 9-16) and port3 (outputs 17-20).  Sending a zero for a port value turns the outputs for that port off.

Outputs: Connect Loads between 'Output' and +V.

• Bit     Binary              Decimal
• 0       00000001b      1d        (Output1)
• 1       00000010b      2d        (Output2)
• 2       00000100b      4d        (Output3)
• 3       00001000b      8d        (Output4)
• 4       00010000b      16d      (Output5)
• 5       00100000b      32d      (Output6)
• 6       01000000b      64d      (Output7)
• 7       10000000b      128d    (Output8)

*********Output Control Commands (Lights):

• Command1:  Set Outputs 1-8 ON/OFF by bit selection
  3 bytes          [1, 'Bit Selection,204] Note: ON bits are 1's, OFF bits are 0's:   (00000001b) Turns On Output1

• Command2:  Set Outputs 1-8 On/OFF by bit selection
  3 bytes          [2, 'Off-Bits',204] Note: (000000001b) Turns On Output9

        Commands 3-15 Reserved for future

*********DMX SPECIFIC COMMANDS 16-26, and 31

• Command16:  Set DMX Channel Values (Starts at Channel 1)
  ? bytes             [16, #Bytes, DMX_CH1 to DMX_CH100], followed by 'Break' if '#Bytes' was not received

• Command17:  Set Multiple DMX 'Fade Channel' values
  ? bytes             [17, #Bytes, Channel#,'Channel Value', 'Fade Value', Channel#, 'Channel Value', 'Fade Value',....], followed by 'Break' if '#Bytes' was not received.

• Command18:  Set 1 DMX 'Fade Channel'
  3 bytes             [18, Channel#, Channel Value, Fade Value]:   *1  End Command

• Command19:  Set all 16 DMX Fade values to one value
  2 bytes             [19, Fade Value]  *1  End Command

• Command20:  Set the 16 DMX 'Fade Channels' to a pre-set Fade Speed (values have to be in Channel order!)
  17 bytes           [20, Ch1_Fade Value, Ch2 Fade Value,... to Ch16_Fade Value], followed by 'Break' unless all 16 Fade values are sent

• Command21:  Set 1 or more DMX channels to a value.
  ? bytes             [21, #Bytes, Channel#, Value, Channel#, Value....], followed by 'Break' if '#Bytes' was not received

• Command22:  Set 1 DMX channel to a value
  3 bytes             [22, Channel#, Value]   *1  End Command

• Command23:  Set all DMX channels to one value (channels 1 to 200)
  3 bytes             [23, Channel Value,204]  *1  End Command

• Command24:  Set all 16 DMX ' Fade Enabled' channels to one value (channels 1-16 depends on options 1-4)
  3 bytes             [24, Channel Value,204]  *1  End Command

• Command25:  Set all DMX 'Non Fade' channels to one value.  (Channels 1-16 depends on options 1-4), and channels 17-200
   3 bytes            [25, Channel Value,204]  *1  End Command

• Command26:  Set DMX Channel#, first byte to this channel, successive bytes to successive channels.  Well suited to DMX Head Controlling!
  ? bytes             [26, #Bytes, Start Channel#,  Value1, more values], followed by 'Break' if '#Bytes' was not received.

• Command27:  Set Default Fade Value for Power-up
  3 bytes            [27,Fade Value, 204]

• Command28:  Set All DMX Channels off Instantly (Does not affect the Fade Values)
  2 bytes             [28,204]

• Command29:  Set the maximum number of DMX channels to transmit (the default is 50).  This value stored in permanent memory.
  3 bytes            [29,#Max Channels, 204]  Note: A value of 0 (zero) sets 512 channels to transmit.
• Command30:  Set 1 Upper DMX Channel
  3 bytes            [30,Channel#,Value]

• Command31   Set 'Sequential' Upper DMX channels
  ?? bytes          [31, Start Channel, Value1, Value2....] Note: This command terminates with a 'break protocol'.


*********Play/Record and Other 'Scene' Commands 32-35

Link to 'Scene Format (Protocol)'

• Command32:  Play 'Recorded' Scene
  3 bytes             [32, Scene# (1-48), 204]

• Command33:  Record 'Scene' (256 byte limit) (Scenes can be concatenated)
                          [33, Scene# (1 to 48), 204, 1 to 512 bytes]

• Command34:  Cancel 'Play Scene'. This command should be issued prior to any new command if Command32 was last command.  This insures that the 'Play Scene' Command is stopped.
  2 bytes             [34, 204]

• Command35:  Erase Scene (erase all scene bytes)
  3 bytes             [35, scene#,204]

• Command36: Set a DMX Scene (all 256 channels are set by the scene data channels 1 to 256) Note: Only 'Max Channels' are transmitted
  3 bytes             [36,scene#,204]

  Note: Commands 37-38 reserved for future use.

• Command39:  Say 'Max Channels = ', Max Channels byte (in text format)

********Miscellaneous Commands (Useful for Development)

• Command43:  Send the Data for DMX channels 17-48 to the Serial Port
                        [43,204]

• Command44:  Send 'Scene Data' to the Serial Port:  All 256 bytes of the scene are sent out the serial port. Very useful for verifying command 'data strings'.
  3 bytes             [44, Scene# (1 to 48), 204]

• Command45:  Report the Software version of the board to the Serial Port
  2 bytes             [45,204]

• Command46:  Report the Goals and Fades for the 24 Fade channels.  The last two bytes of this report are the 'Default Fade' and 'Max Channels' from EEPROM.
  2 bytes            [46,204]

• Command47:  Firmware Upgrade Command (the HZ LED will flash at 2 Hz) (use the 'HMS_Downloader.exe' program)
                          [47,204]

Note: The brackets are not part of the command byte sequence.

Here are some useful files for helping with testing or setting up the board.

   Link: Setting up the Serial Port and Sending Bytes with 'BrightAuthor'.

HMS-DMX.brs (sequences DMX channels 1 thru 4 using the HMS Protocol). Rename this file to 'autorun.brs' and put it on the SD card

Options: (SW1)(Firmware 7.x) (Updated processor with programmable serial polarity)

• SW1-1 Off = HMS Protocol enabled (uses the command structure explained above).
• SW1-1 On = HMS Protocol disabled. The byte sequence is [Port1_Byte,Port2_Byte, DMX_CH1_byte, successive DMX channel bytes]
• SW1-2 OFF = Normal USB serial polarity
• SW1-2 On  =  Inverted Serial Polarity (for the 3.5mm TTL serial port of the BrightSign)
• SW1-3 Off  = Send DMX bytes every .5 seconds or as the DMX bytes change (command changes or fade changes).
• SW1-3 On = Continuous DMX
• SW1-4 On = Cycle Diagnostics ( Turns DMX channels 1-100 full on, then off every .7 seconds).  Outputs are set on sequentially (all ports).
                        $AA (204) is sent to the serial port (USB or Serial) with each 'cycle loop'.

Not HMS Protocol:

The first byte 'value byte' received sets output port1 (outputs 1-8), the second byte received sets output port2 (outputs 9-16).  Each byte after byte 2 is sent to the DMX channels.
I.E. Send this byte sequence [1,128,255,0,64,128] and this is the results:

• 1=Port1 value (output 1 turns on)
• 128 = Port2 value (output 16 turns on)
• 255 = DMX_CH1 value (full on)
• 0 = DMX_CH2 value (off)
• 64 = DMX_CH3 value (low brightness)
• 128 = DMX_CH4 value (medium brightness).

Last Revised: 08/27/2024
