Brightsign 4x4-HC Interface Board

for BrightSign units with 'Phoenix' GPIO

PH-4x4-HC

Features:

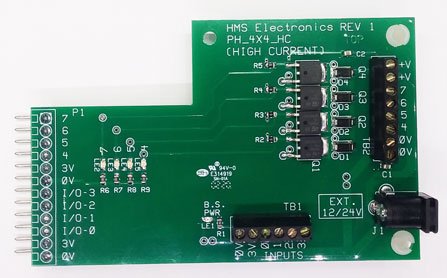

• Small footprint (4.5 x 2.7 inches)
• 4 High Current Output Drivers for Lamps or Relays (10 amps maximum each output), logic compatible
• 4 Inputs (direct to the Brightsign)
• On board LEDs to indicate BrightSign Power & Control States
• Mount Direct the BrightSign using the new 12 pin terminal block of the BrightSign.

This board solves the need for a simple 'low cost' I/O board for the Brightsign Video Player.  Four inputs go to the BrightSign and four of the Brightsign I/O pins (Btn-4 through Btn-7) drive the outputs.
A 'high' on the GPIO pins 4-7 turns on the outputs (drives the outputs low).

Maximum current output each driver is 10 amps.  To drive more than 5 amps total, use the 0V and +V of TB2 for high current connections.  20 amps maximum total current.  For more than 10 amps total, be sure to connect the power supply to both 0V connections of TB2.  The outputs are logic compatible and can drive other BrightSigns (slaves).

Note: Connect the load from +V to 'Output' (The '-' end of the load connects to the output)

Last Revised: 08/27/2024
