| Computer Style | Ribbon Cable |
Note: Cable Lengths: Input cables can be very long (500 ft) if there is low 'electrical noise'. Suitable cables are Ribbon Cable, CAT-5, Telephone cable, multi-conductor and single wires. If there is enough electrical noise to false trigger the Brightsign inputs, use a shielded cable or twisted pair cable and tie one of the twisted pairs to 0V (zero volts or what some people would call ground) The Output cable length can be even longer (more than 1000ft) if driving low current devices like LED back lights. The Output cable length will have no effect on my I/O boards other than possible loss of power to the load (lamps etc.). The Brightsign inputs have 1K pull-up resistors and 100 ohm input resistors.
'DB15 Male' to 'DB15 Female' CablesLink: DB15 GPIO Pin Out |
|
Product |
Notes: |

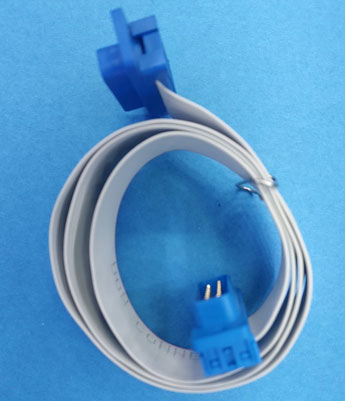

| DB15-Ribbon Cable (Cables 1 to 10 Feet) |
1ft, 2ft, 3ft, 4ft, 6ft, 7ft and 10 foot Ribbon Cable ) no screws |
| DB15-15 15 feet (5 meters) $16.50 |
Ribbon Cable |
| DB15-25 (25 feet/8.3 meters) $28.00 |
Ribbon Cable |
| DB15-50 (50 feet/16.7 meters) $44.00 |
Ribbon Cable |

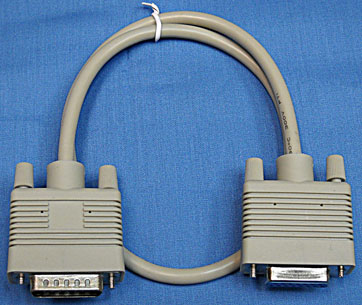

| DB15-CS-5 (5 Ft.) $15.00 |
Computer Style |
| DB15-CS-10 (10 Ft.) $20.00 |
Computer Style |
| Please contact us by email if you have need of a custom size cable. | |
