BrightSign 'Remote Control' Wireless Interfaces

GPIO or RS232 or USB

 Legacy BrightSign Wireless Products (433 MHz)
For Wireless Connections to the BrightSign

Note: Order PH12-DB15 adapter for use with newer BrightSigns!

Product

Description

Image (click image for larger image)



RF Antenna Selections (433 Mhz)

 ANT433-NP-DM

Price Each $10 (USD)

Direct Mount 1/4 Wave Antenna ANT-NP-DM

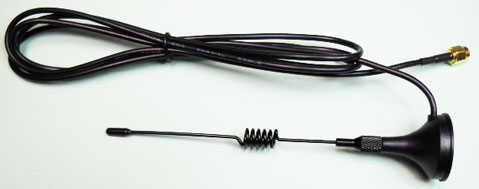

 ANT-NP-RM

Price Each: $15.00

Remote Mount 1/4 Wave Antenna.  Wire length 58" (1.5 meters)



ANT-NP-RM
 ANT433-NP-1/4W-DM

Price Each: $9.00

Direct Mount 1/4 Wave Antenna



ANT-NP-1/4W-DM


Series 3 & 4  Wireless Products 916 Mhz

RF-TRP-LOCAL

Price Each: $40.00 (USD)

Frequency
Use this 'LOCAL' RF board at the BrightSign. Dip Switches for setting master/slave and more.  Dip switch for setting the Address/Channel. This board can interface with 1 or more 'Remote' RF boards or with 1 or more 'Local' RF boards.  Multiple BrightSigns can be controlled wirelessly!

Links: Specifications Sheet



Antenna Included

RF-TRP-REMOTE

Price Each: $40.00 (USD)

Frequency
Use this 'REMOTE' RF board to interface wirelessly to the BrightSign (the BrightSign needs the 'Local' board'. Dip Switches for setting master/slave and more.  Dip switch for setting the Address/Channel.  Multiple 'Remote' boards can be used to control a single or multiple 'Local' boards'.

Links: Specifications Sheet



Antenna Included

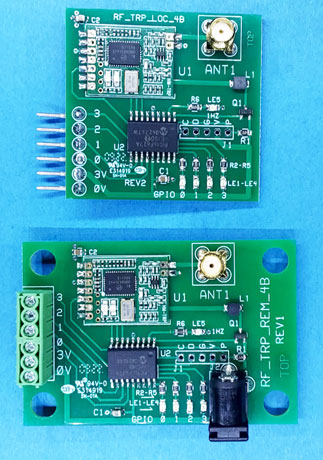

RF-TRP-4BUTTON (SET)

Price Each: $60.00 (USD)

Frequency
Use this '4 BUTTON RF SET'to interface wirelessly to a BrightSign. 1 TO 4 BUTTONS (SWITCHES) wireless connection to the BrightSign.

Links: Specifications Sheet



Antenna Included

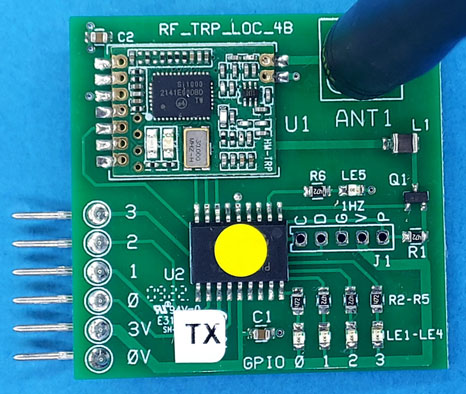

RF-TRP-LOC-4GPIO-TX

Price Each: $35.00 (USD)

Frequency
Use this 'LOCAL 4 BUTTON TX BOARD' for 4 'GPIO' wireless control of another BrightSign or Wireless Relay Board.

Links: Specifications Sheet



Antenna Included

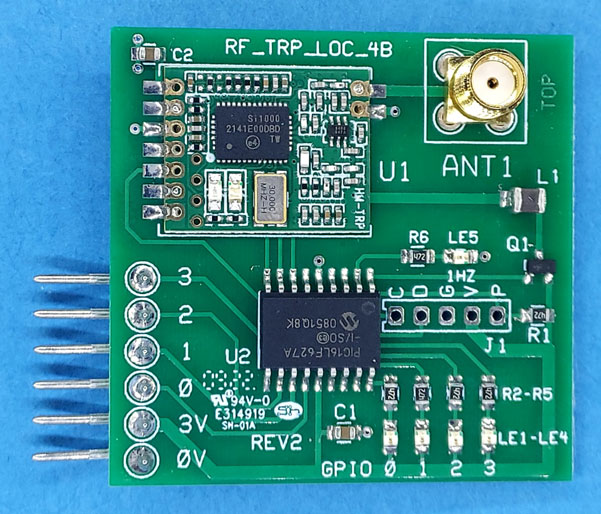

RF-TRP-LOC-4GPIO-RX

Price Each: $35.00 (USD)

Frequency
Use this 'LOCAL 4 BUTTON RX BOARD' for a 4 GPIO wireless control of a BrightSign.  Use the 'RF-TRP-LOC-4GPIO-TX BOARD shown above to transmit to this board.

Links: Specifications Sheet



Antenna Included




'Key fob' GPIO Remote Control

order TB12-DB15 Adapter for BrightSigns with Phoenix GPIO connector

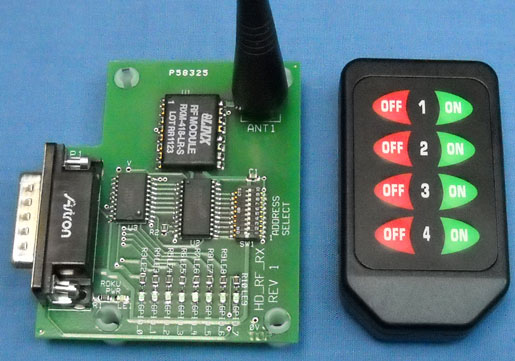

HD-Linx-Remote

Price Each: $45.00 (USD)

Frequency
RF Remote Controller For BrightSign.  1024 addresses selectable. Available in 418 and 433 Mhz.  'Fob' transmitter is FCC approved.  Order Antenna Separately!

Links:  Specification Sheet

HD-Linx-Remote

8-Button Remote

Price Each: $15.00 (USD)

Frequency
Additional 8 button remote for the above 'HD-Linx-Remote' Linx 8 Button Keyfob
USB to Wireless (Remote Control of AC Power)

USB-A-RF (RF transmitter)

Price Each: $30.00 (USD)

Frequency

 Comming soon May, 2025

Plugs directly into the BrightSign USB-A connector. RF transmitter.  Range ~ 25 meters

Link: Data Sheet

Comming Soon! (May 2025)

USB-A-RF-LR (Long Range RF transmitter)

Price Each: $35.00 (USD)

Frequency

 Comming soon May, 2025

Plugs directly into the BrightSign USB-A connector. RF transmitter.  Range ~100 meters

Link: Data Sheet

RF-1R (Remote Relay)

Price Each: $40.00 (USD)

Frequency

 Comming soon May, 2025

Wireless control of a relay for remote control of AC power (100 to 240V AC)  1 of 8 relay selections if needed for multiple relay modules
Built-in AC-DC converter (no external DC power required).  Range ~25 meters

Link: RF-1R Schematic    Link: RF-1R Data Sheet

Contact HMS if you need the board mounted in an enclosure

Comming Soon! (May 2025)

RF-1R-LR (Long Range RF Receiver Remote Relay)

Price Each: $45.00 (USD)

Frequency

 Comming soon May, 2025

Wireless control of a relay for remote control of AC power (100 to 240V AC).  1 of 8 relay selections if needed for multiple relay modules.
Built-in AC-DC converter (no external DC power required).  Range ~100 meters

Link: RF-1R Schematic    Link: RF-1R Data Sheet

Contact HMS if you need the board mounted in an enclosure



BrightSign Adapters

TB12-DB15 (SERIES 3 & 4 GPIO Adapter)

 Price Each: $17.50 (USD)

Discount
This adapter converts the new Series 3 & 4 BrightSigns with pluggable terminal block to DB15 Connector.  Order for HMS products that require the DB15 connector. TB10-DB15 ADAPTER



PH-TB6 (SERIES 3 & 4 GPIO Connector)

 Price Each: $12.00 (USD)

BrightSign is not Shipping GPIO connectors with the new units.  Order here or order with BrightSign when ordering the player.  Note: The GPIO connector from BrightSign is supplied as two 6 pin connectors. Phoenix 6 pin

6 Pin Phoenix Connector



PH-TB12 (SERIES 3 & 4 GPIO Connector)

 Price Each: $18.00 (USD)

BrightSign is not Shipping GPIO connectors with the new units.  Order here or order from BrightSign when ordering the player.  The GPIO connector from BrightSign is supplied as two 6 pin connectors. TB10-DB15 ADAPTER

12 Pin Phoenix Connector



Links:   Power Supplies
