Setting Position 1 for Indexing the reels to fill out the reel table sheets..

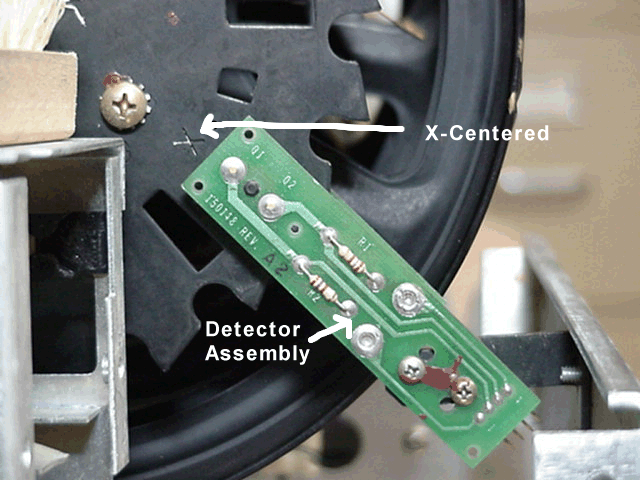

Note: This picture is with the side of the reel mechanism removed for clarity.

1. Rotate the reel until the 'X' centers to the detector board

2. Lock in the reel using the reel stop mechanism.

3.  With the door closed, symbol 1 (stop 1)  is on the center pay line!

4. Begin recording the symbols to the reel table sheet.  The reel rotates down to get the next symbol on the payout line.
