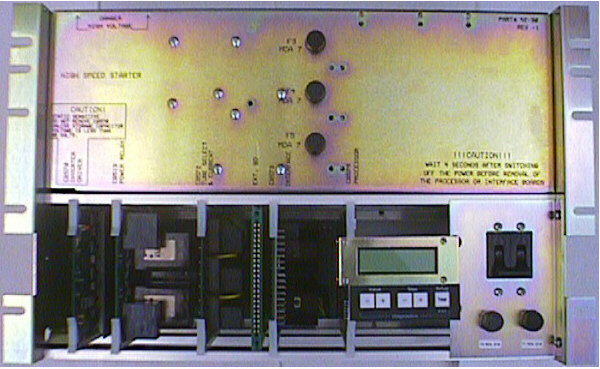

Technical Specifications:
Weight: 45 lbs. Cabinet Weight: 26 lbs. Total Weight: 71 lbs
(starter and cabinet) Shipping Weight: 72 lbs.
Power Supply:
208/240 VAC single phase 20 amp “R” stator -or- 30 amp “Q” stator -
UL approved, CE registered
-or- 277 VAC single phase 12 amp “R” stator -or- 20 amp “Q” stator
- UL approved
Stator Power and Operation:
| |
Low Speed - 60Hz |
High Speed - 180Hz |
|
| |
Start |
Run |
Start |
Run |
AC Brake |
DC Brake |
R |
220V |
54V |
440V/500V |
100V |
220V |
60VDC |
Q |
220V |
52V |
350V |
60V |
220V |
50VDC |
Stator connections made directly to a terminal strip in the unit
440V/500V is selectable at time of installation
Brake Sequence:
High speed to low speed = AC brake
Low speed to stop = DC brake (optional/programmable to duration) *Starter will not
change tube selection until the spinning tube is braked as programmed
Logic Inputs:
Input opto-isolators require 5 - 24Volts DC from generator
8 Command Inputs:
1. 'T1', Tube 1 select
2. 'T2', Tube 2 select
3. 'T3', Tube 3 select
4. 'CO', Coast (useful for digital radiography applications) (see note 1)
5. 'SF', Spot film transfer - usually “RL” from the spot filmer (see note 1)
6. 'HS', High speed select - usually from the tube protector (see note 1)
7. Fluoro - usually from the footswitch circuits (see note 1)
8. Rad Prep - usually from the handswitch circuits (see note 1)
Note 1: These inputs are programmable as to functionality. The user program is held in
EEPROM
Logic Outputs:
1. Standard X-ray inhibit interlock - N.O. contacts close during run
2. Auxiliary relay - N.O. & N.C. contacts, programmable as to functionality (Both
output relay contacts: 3 amps max at 30V DC or 250V AC)
Acceleration, AC-Brake,DC-Brake,X-ray Delay:
All adjustable in .1 second increments.
Hold Times (hangover)
All adjustable in .1 second/1 minute increments.
Documentation:
Manual supplied with complete installation instructions, theory of operation,
troubleshooting guide, complete schematics, and detailed parts list.
LCD Display:
Displays program information, starter status, fault indications, and diagnostics.

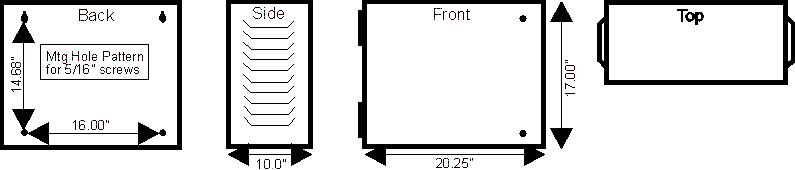

Dimensions and Mounting Hole Pattern:
|
