Break-Out AdaptersFor DB15 Connector 'Break-Out' |
||
|

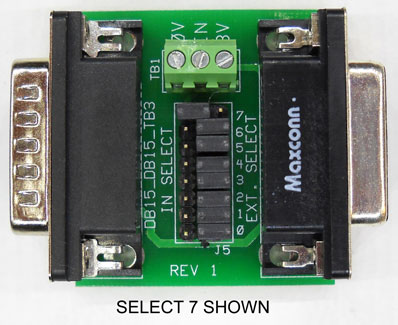

DB15-DB15-TB3 (GPIO Break-Out Adapter) Price Each: $20.50 (USD) |
DB15 Break-Out Adapter (GPIO). This adapter board mounts to
the back of the Brightsign (plugs directly into the Brightsign GPIO
connector). This adapter useful for button boxes or button panels when you
also want to connect a 'local device' such as a PIR detector or switch. It
can also be remote mounted by using a DB15 cable. Attaching screws
included. Header Jumpers provided to disconnect a Button Box or
Button Panel (or other HMS I/O board )connection and connect the external
PIR or Proximity Detector to any GPIO. I.E. (As shown) jumper 7 is set to
PIR. So GPIO-7 is connected to the PIR/Proximity device or switch and not
to the HMS-I/O board or button box. Links: DB15 Cables |
 |
|

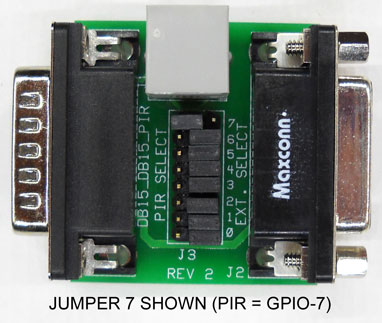

DB15-DB15-PIR (GPIO Break-Out Adapter) Price Each: $20.50 (USD) |
DB15 Break-Out Adapter (GPIO). This adapter board mounts to
the back of the Brightsign (plugs directly into the Brightsign GPIO
connector). This adapter useful for button boxes or button panels when you
also want to connect a 'local device' such as a PIR detector or switch. It
can also be remote mounted by using a DB15 cable. Attaching screws
included. Header Jumpers provided to disconnect a Button Box or
Button Panel (or other HMS I/O board )connection and connect the external
PIR or Proximity Detector to any GPIO. I.E. (As shown) jumper 7 is set to
PIR. So GPIO-7 is connected to the PIR/Proximity device and not to the
HMS-I/O board or button box. Links: DB15 Cables PIR Cables |
 |
