Infrared Motion Detectors |
||
|
BS-PIR-Z (Passive Infrared Motion Detector) Price Each: $68.00 (USD) |
Passive Infrared Motion Detector with Sensitivity
adjustment. Range 25+ to about 3 feet. For Phoenix connections, order the cable with 'TB' connections for direct connect to the Phoenix Terminal Block Legacy Machines: Use with DB15-TB10-3V for direct connection to the BrightSign GPIO port. |
|
|

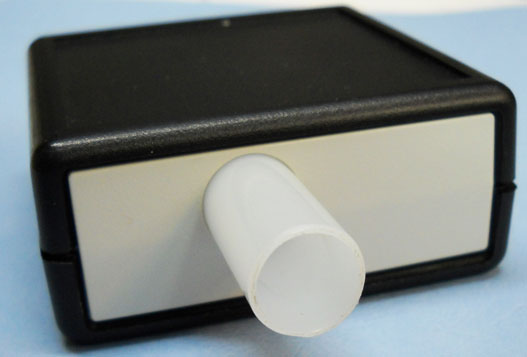

PIR-CD (COLLIMATING DEVICE) Price each: $4.50 (USD) |
The PIR detectors have a very wide 'viewing' range. Order this 'attachment' to narrow the field of vision. The tube is easily removed (press fit by hand) in order to cut it to adjust your 'field of vision'. Install it in place of the end with the round PIR cutout. |
|
Proximity Detectors |
||
|
BS-UPD (Ultrasonic Proximity Detector) Price Each: $75.00 (USD) |
Ultrasonic Proximity Detector with precision distance
triggering. 4" to 30"
Use with DB15-TB10-3V for simple direct connection to the BrightSign GPIO port. Or, with DB15-RJ11-6 phone cable adapter. |
|
Legacy GPIO adapters (Series 1 and Series 2 BrightSigns) |
||
|
FORMERLY: DB15-DB15-PIR (GPIO Break-Out Adapter) DB15-DB15-RJ12 (GPIO To RJ12 Break-Out Adapter) Price Each: $22.00 (USD) |
DB15 Break-Out Adapter (GPIO). This adapter board mounts to
the back of the Brightsign (plugs directly into the Brightsign GPIO
connector). This adapter useful for button boxes or button panels when you
also want to connect a 'local device' such as a PIR detector or switch. It
can also be remote mounted by using a DB15 cable. Attaching screws
included. Header Jumpers provided to disconnect a Button Box or
Button Panel (or other HMS I/O board )connection and connect the external
PIR or Proximity Detector to any GPIO. I.E. (As shown) jumper 7 is set to
PIR. So GPIO-7 is connected to the PIR/Proximity device and not to the
HMS-I/O board or button box. Links: DB15 Cables PIR Cables |
 |
|

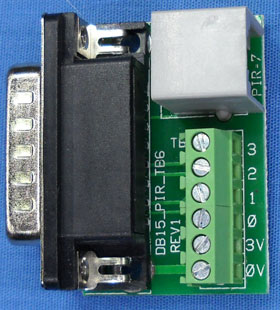

FORMERLY: DB15-PIR-TB6 (PIR ADAPTER, +TB) DB15-RJ12-TB6 (RJ12 ADAPTER + TB) Price Each 18.00 (USD) |
GPIO (DB15) PIR Adapter (RJ12) with 6 pin terminal block for up to 4 additional inputs. The PIR output connects to GPIO-7 (Btn7) and the 4 inputs connect to GPIO 0-3. With mounting screws |
|
|

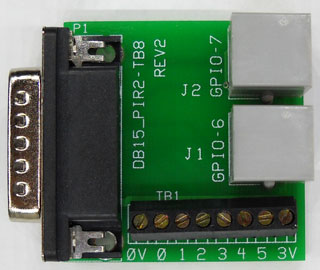

FORMERLY: DB15-PIR2-TB8 (DUAL PIR ADAPTER, +TB) DB15-RJ12-2-TB8 (DUAL RJ12 ADAPTER, +TB) Price Each 22.00 (USD) |
GPIO (DB15) PIR Adapter (RJ12) with 8 pin terminal block for up to 6 additional inputs. The PIR output connects to GPIO-7 (Btn7) and GPIO-6 (Btn6). The 6 inputs connect to GPIO 0-5. Comes with mounting screws |
|
Series 3 & 4 PIR & UPD AdaptersMOTION DETECTOR ADAPTERS 'MD' | ||
|

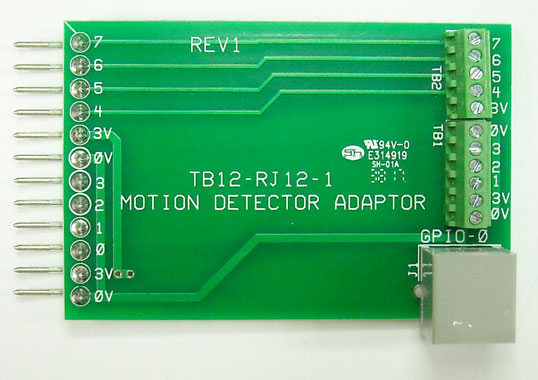

TB12-RJ12-TB11 (BrightSign MD Adapter) Formerly TB12-PIR-TB11 Price Each 22.00 (USD) |
GPIO to RJ12 'PIR' or 'UPD' Adapter with 11 pin terminal block for up to 7 additional inputs. The RJ12 connectors connects to GPIO-0 (Btn0). The 7 inputs connect to GPIO 1-7. |
|
|

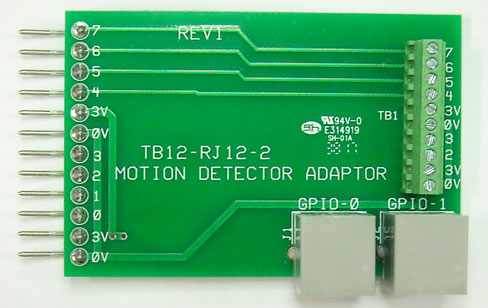

TB12-RJ12-2-TB10 (BrightSign MD-2 Adapter) Formerly TB12-PIR2-TB10 Price Each 24.00 (USD) | GPIO to RJ12 'PIR' or 'UPD' Adapter with 10 pin terminal block for up to 8 additional inputs. The 'MD' outputs connects to GPIO-0 (Btn0) and GPIO-1 (Btn1). The 6 inputs connect to GPIO 2-7. |
 |
|

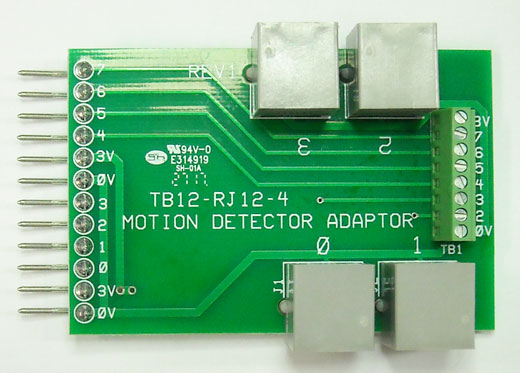

TB12-RJ12-4-TB8 (BrightSign MD-4 Adapter) Formerly TB12-PIR4-TB8 Price Each 27.00 (USD) | Four Motion Detector Jacks for GPIO to 'PIR' or 'UPD' Adapter with 10 pin terminal block for up to 6 additional inputs. The 'MD' outputs connects to GPIO-0 (Btn0) and GPIO-1 (Btn1). The 6 inputs connect to GPIO 2-7. 'MD' Jacks 3 and 4 share the inputs 2 and 3. |
 |
|

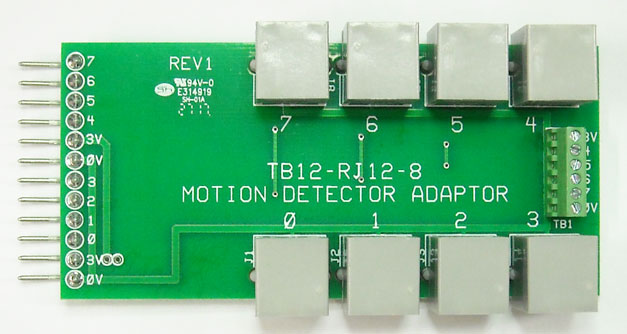

TB12-RJ12-8-TB6 (BrightSign MD-8 Adapter) Formerly TB12-PIR8-TB6 Price Each 32.00 (USD) | Eight Motion Detector Jacks for GPIO to 'PIR' or 'UPD' Adapters with 6 pin terminal block for up to 4 additional inputs. The 'MD' outputs connects to GPIO-0 (Btn0) thru GPIO-7 (Btn7). The 4 inputs connect to GPIO 4-7. 'MD' Jacks 4,5,6 and 7 share the inputs 4,5,6, and 7. |
 |
| Link: RJ12 Phone Cables | 6 Conductor Cables for PIR and Proximity Detectors | |
