Button Boxes and Membrane Switch Panels

! ! ! Print the Schematic and Specification Sheet for your Records. Product shipped without Documentation ! ! !



 Button Boxes and Membrane Switch Panels

Product

Description

Click on image for larger image


 4 Button Box
(lighted switches-WHITE LED'S)

Price Each: $55.00 (USD)

Mounting Style
4 Lighted Switches (Lights are controlled by the Brightsign)

Links:   Schematic       Specifications Sheet   Break-Out Adapters

Links:   DB15 Cables  BrightAuthor (how to set lights)

4 Button Box


 4 Button Box
(lighted switches-GREEN LED's)

Limited Quantity (to be discontinued)

Price Each: $35.00 (USD) (close out pricing)

Mounting Style
Specifications same as above but with Green LED's 4 Button Box

 4-Button-Ovly
(Overlay for 4 button box)

Price Each: $4.00 (USD)

Black Overlay for 4 button Boxes 8 Button Overlay

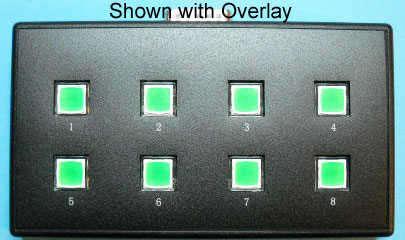

 8 Button Box
(lighted switches) Green 6 left, to be discontinued

Price Each: $50.00 (USD) (discounted for close-out)

Mounting Style
8 Lighted Switches (switch lights are permanently on) (See RS232-8Button if you need to control the lights)

Links:   Specifications Sheet

Links:   DB15 Cables   BrightAuthor (how to set lights)

8 Button Box


 8 Button Box W
(lighted switches) White

Price Each: $78.00 (USD)

Mounting Style
8 Lighted Switches (switch lights are permanently on) (See RS232-8Button if you need to control the lights)

Links:   Specifications Sheet

Links:   DB15 Cables   BrightAuthor (how to set lights)

8 Button Box

 8-Button-Ovly
(Overlay for 8 button box)

Price Each: $4.00 (USD)

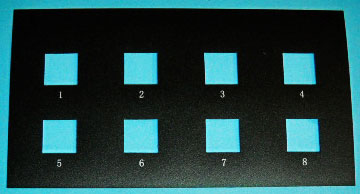

Black Overlay for 8 button Boxes (8 button boxes) 8 Button Overlay
4 or 8 Button Box 'Flange Mount Bottom' Picture

-FM (Flange Mount Version of the Button Boxes)

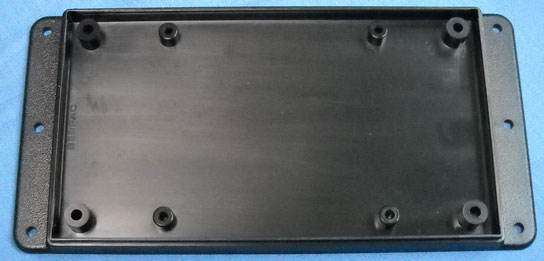

Select -FM on the 'Add to Cart' button 'Drop Down' for the Button Boxes to get the box with the 'flange mount bottom'. Flange Bottom
Click Picture to get full view

USB-8B-8L-PCB (Lights controlled)

Price Each: $50.00 (USD)

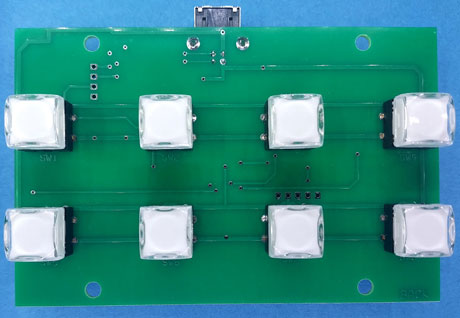

USB 8 button inputs and 8 lights PCB (USB Controlled)  For mounting to your own artwork. USB 8BUTTON 8 LIGHTS PCB

USB-8B-8L-BOX (Lights controlled)

Price Each: $80.00 (USD)

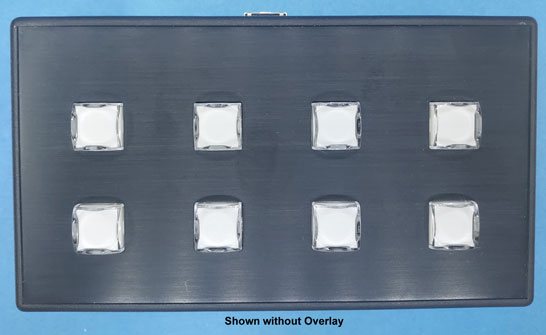

USB Box with 8 button inputs and 8 lights (USB Controlled) USB 8BUTTON 8LIGHTS BOX


Membrane Switch Panels & Membrane 'Button Boxes'

 4Button-MS-Panel (non-lighted)

Price Each: $25.50 (USD)

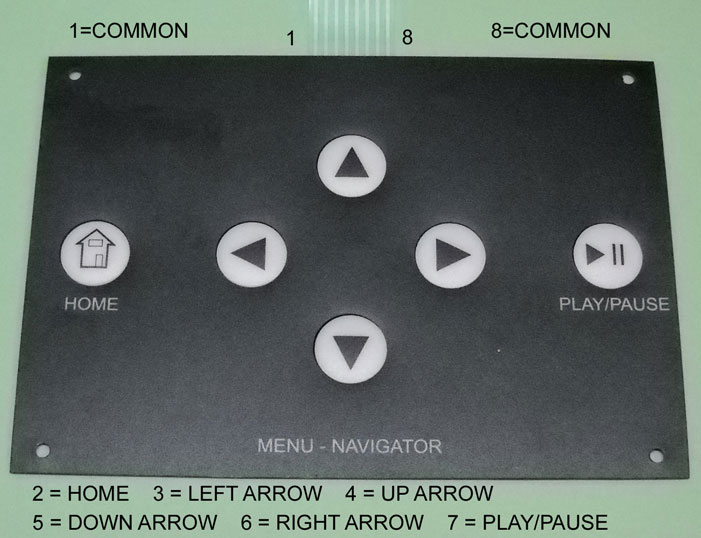

4 button 'membrane switch' panel for surface mounting (has a peel and stick backing).  Comes with mounting bracket adapter for DB15 (GPIO) connection to the membrane panel connector.

Links:   Schematic       Specifications Sheet    Break-Out Adapters

Links:   Surface Mount Drawing

4 Button Membrane Swith

 4Button-MS-Panel-LI (Lighted)

Price Each: $35.50 (USD)

4 button 'membrane switch' panel with lighted buttons for surface mounting (has a peel and stick backing).  Comes with adapter for DB15 (GPIO) connection to the membrane panel connector.

Links:   Schematic       Specifications Sheet    Break-Out Adapters

Links:   Surface Mount Drawing

4 Button Membrane Switch Lighted


 8Button-MS-Panel (non-lighted)

Price Each: $35.50 (USD)

8 button 'membrane switch' panel for surface mounting (has a peel and stick backing).  Comes with mounting bracket adapter for DB15 (GPIO) connection to the membrane panel connector.

Links:   Schematic       Specifications Sheet    Break-Out Adapters

Links:   Surface Mount Drawing

8 Button Membrane Switch

 8Button-Panel-LI (Lighted)

Price Each: $135.50 (USD)

8 button 'membrane switch' panel with lighted buttons for surface mounting (has a peel and stick backing).  Comes with RS232 Interface Board

Links:

Links:   Surface Mount Drawing

8 Button Membrane Switch Lighted

 4Button-MS-Box (non-lighted)

Price Each: $65.50 (USD)

4 button membrane style switch panel with keyboard style enclosure.  Switch panel can be rotated for wall mounting of the enclosure.  Desk Mount or Wall Mount (same box)
DB15 (GPIO) Interface.

Links:   Schematic       Specifications Sheet    Break-Out Adapters

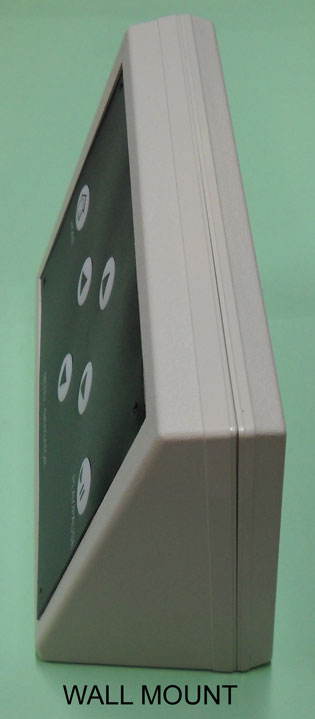

4 Button Box (Desk)4 Button Box Wall

 4Button-MS-Box-LI (lighted)

Price Each: $75.50 (USD)

4 button membrane style switch panel with keyboard style enclosure.  Switch panel can be rotated for wall mounting of the enclosure.  Desk Mount or Wall Mount (same box)
DB15 (GPIO) Interface.

Links:   Schematic       Specifications Sheet    Break-Out Adapters

4 Button Box Lighted (Desk)4 Button Box Lighted (Wall)

 8Button-MS-Box (non-lighted buttons)

Price Each: $85.50 (USD)

8 button membrane style switch panel with keyboard style enclosure.  Switch panel can be rotated for wall mounting of the enclosure.  Desk Mount or Wall Mount (same box)
DB15 (GPIO) Interface

Links:   Schematic       Specifications Sheet    Break-Out Adapters

 8 Button Box (Desk) 8 Button Box (Wall)

 8Button-MS-Box-Li (lighted buttons are always on)

Price Each: $95.00 (USD)

8 button membrane style switch panel with keyboard style enclosure.  Switch panel can be rotated for wall mounting of the enclosure.  Desk Mount or Wall Mount (same box).  DB15 (GPIO) Interface.  LED Brightness is adjustable.

Links:   Schematic       Specifications Sheet    Break-Out Adapters

 8 Button Box (Desk) 8 Button Box (Wall)

 RS232-8Button-MS-Box-LI (lighted buttons)

Price Each: $155.50 (USD

8 button lighted membrane style switch panel with keyboard style enclosure.  Switch panel can be rotated for wall mounting of the enclosure.  RS232 Interface for control of lights.  Desk Mount or Wall Mount (same box).

Links:  Schematic     Specification Sheet

8 Button Box Lighted (Desk)  8 Button Box Lighted (Wall)

USB-RS232-5V CABLE

Price Each: $15.00 (USD)

Use this cable for Button boxes using RS232.  This is a custom cable suplying the 5V needed to drive the lights!  Length: 14"

8 Button Box Lighted (Desk)

DB9 Cables (Male-Female extension Cables for RS232 connections)

Cable Length

Use this cable for Button boxes using RS232.

8 Button Box Lighted (Desk)

Note: All button boxes neeed 'DB15 Cables' or RS232 Cables (as required) if not attached directly to the BrightSign!
