LEGACY MACHINES WITH DB15 GPIO CONNECTORThese products are being phased out. Call to get a quote on parts without a 'PayPal link' |
||
|
DB15-TB10-3V (GPIO Adapter) Price Each: $21.00 |
DB15 Adapter (GPIO). This adapter board mounts to the back
of the Brightsign (directly plugs into the Brightsign connector) and the 8
GPIO's are available using the Terminal Block provided. It can also be
remote mounted by using a DB15 cable. 3.3 volts available on the Terminal
Block. Attaching screws included. Use for simple Push-Buttons
Switches (and 3Volt lights).
Links: DB15 Cables Schematic (Typical Connections) |
|
|
TB12-DB15-S (SERIES 3 GPIO Adapter w/Screws) Price Each: $22.00 (USD)
|
This adapter converts the new Series 3 BrightSigns with pluggable terminal block to DB15 Connector. Order for HMS boards that require the DB15 connector. Use the screws to secure the HMS Board to the adapter. |
|
|
Sync Board (Multiple BrightSign Driver) Price Each: $40.00 (USD) |
This sync-board mounts to the back of the Brightsign
(directly plugs into the Brightsign 15 pin GPIO connector) with attaching
'captive screws'. Use for 'sync' of multiple BrightSign players (eliminates
custom sync cable). 4 inputs (Buttons) and 4 drivers (Outputs) to drive
multiple BrightSigns Links: Specification Sheet Schematic (Typical Connections) |
|
|
Price Each: $36.00 (USD) |
4 ISOLATED INPUTS (Buttons) for remote trigger of the
BrightSign (3-5V or 12V or 24V remote trigger voltage). !No Outputs!
Direct mount to DB15 connector on the BrightSign (attaching hardware
included) Links: Specification Sheet Schematic (Typical Connections) |
|
|
Price Each: $40.00 (USD) |
4 ISOLATED INPUTS (Buttons) for remote trigger of the
BrightSign (Custom Input Voltages remote trigger voltage). !No Outputs!
Direct mount to DB15 connector on the BrightSign (attaching hardware
included). Contact us with the input voltage requirement (I.E. 5V input1,
12 volts input 2-4) Links: Specification Sheet Schematic (Typical Connections) |
|
|
Price Each: $36.00 (USD) |
4 ISOLATED INPUTS (Buttons) for remote trigger of the
BrightSign or HMS Interface boards. Jumpers provided to select 3-5V or
12-24V interface voltages. Links: Specification Sheet Schematic (Typical Connections) |
|
|

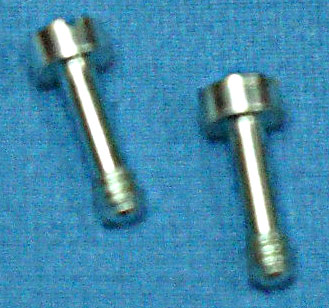

DB15-Screws (Attaching Screws) Price Each Set (2 screws): $2.00 (USD) |
'Captive Screws' for direct attaching of Boards to the BrightSign I/O connectors. |
|
|

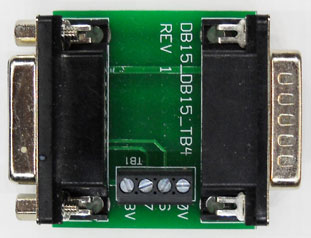

DB15-DB15-TB4 (GPIO Break-Out Adapter) Price Each: $18.50 (USD) |
DB15 Break-Out Adapter (GPIO). This adapter board mounts to
the back of the Brightsign (plugs directly into the Brightsign GPIO
connector). This adapter useful for button boxes or button panels when you
want to connect a 'local device' such as a PIR detector. It can also be
remote mounted by using a DB15 cable. Attaching screws included.
The terminal block connected to GPIO-7, GPIO-6, 3.3V and 0V (ground).
Links: DB15 Cables |
|
|
DB15-DB15-TB3 (GPIO Break-Out Adapter) Price Each: $30.00 (USD) |
DB15 Break-Out Adapter (GPIO). This adapter board mounts to
the back of the Brightsign (plugs directly into the Brightsign GPIO
connector). This adapter useful for button boxes or button panels when you
also want to connect a 'local device' such as a PIR detector or a switch.
It can also be remote mounted by using a DB15 cable. Attaching screws
included. Header Jumpers provided to disconnect a Button Box or
Button Panel connection and connect the external input to any GPIO. Links: DB15 Cables |
 |
|

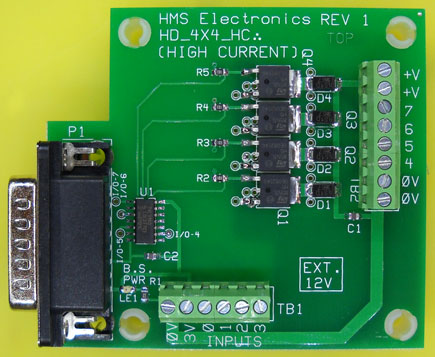

BS-4X4-HC (I/O Board, High Current)
4 INPUTS (Buttons), 4 High Current Outputs Price Each $78.00 (USD) |
Inputs: 4 direct inputs to the BrightSign (normally open
switches) Outputs: 4-High Current Mosfets. 6 amps maximum each circuit. 30 amps maximum all 4 circuits on. An 'invert circuit' is used to prevent activation of outputs until the GPIO outputs go low. See the specification sheet for details Links: Specification Sheet Schematic Power Supplies Note: 12V Power Supply Required (6 amps or better) |
|
|
BS-485X (DMX Control of GPIO) Price Each $100 |
DMX512 RECEIVER to GPIO Interface board to Operate the Brightsign via a DMX512 controller. Address Selectable via Dip Switch Links: Schematic Specifications Sheet Links: DB15 Cables XLR-XLR Cables About DMX512
|
|
|

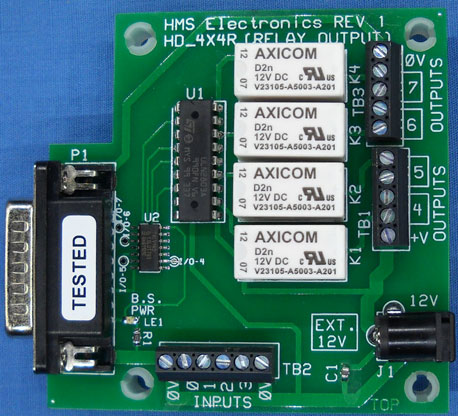

BS-4X4R-REV2 (I/O Board w/Relay Outputs) 4 INPUTS (Buttons), 4 ISOLATED OUTPUTS (RELAYS), With Inverted Logic Price Each $80.00 (USD) |
Inputs: 4 direct inputs to the BrightSign (normally open
switches) Outputs: Relays for isolated outputs. U.L. Contact Ratings: 30VDC/1.0A, 100VDC/0.3A, 125VAC/0.5A, 125VAC/1.0A. The 'invert circuit' is used to prevent activation of relays until the GPIO outputs go low. See the specification sheet for details Links: Specification Sheet Schematic Power Supplies Note: 12V Power Supply Required (300milliamps or better) |
|
|
BS-4OPTO-4R (4 Opto Inputs, 4 Relay Outputs) 4 ISOLATED INPUTS (Buttons), 4 ISOLATED OUTPUTS Price Each $110.00 (USD) |
Inputs: OPTO-Isolators' (similar to solid state relays) for
inputs + 3 direct inputs to bypass opto-isolators if needed (12V or 24V
input voltages). For GPIO connector
Outputs: Relays for isolated outputs. U.L. Contact Ratings: 30VDC/1.0A, 100VDC/0.3A, 125VAC/0.5A, 125VAC/1.0A |
|
|
BS-4OPTO-4 (4 Opto Inputs, 4 Lamp/LED Drivers) 4 ISOLATED INPUTS (Buttons), 4 Each 2 amp Drivers Price Each $96.00 (USD) |
Inputs: OPTO-Isolators' (similar to solid state relays) for
inputs. Plus 4 direct inputs to bypass opto-isolators if needed (12V or 24V
input voltages). For GPIO connector
Outputs: 2 amps each output. 6 amps maximum |
|
|
BS-4OPTO-4-5V (4 Opto Inputs, 4 Lamp/LED Drivers) 4 ISOLATED INPUTS (Buttons), 4 Each 2 amp Drivers Price Each $96.00 (USD) |
Same board as above but with opto-coupler resistors set for 5V. |
|
|

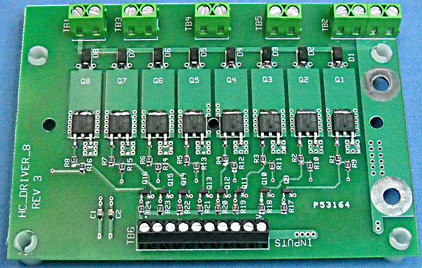

HC-DRIVER-8-6A Output High Current Adapter Board
Price Each $100.00 |
Connect this board to any HMS output port to expand the
output current drive to 6 amps per output.
Links: Specification Sheet Schematic |
|
